Database 11gR2 Installation On Solaris 11.1 (x86-64).

I installed Oracle Database 11gR2 on Oracle Solaris11 box using VM virtual machine, so I'd like to share my work with you.

I had used Oracle provided default configured Solaris Server VM image which you can download using the below link.
Oracle Solaris 11.1 VM for Oracle VM VirtualBox

I found somewhat sophisticated to edit the file using "vim" in Solaris than Linux, So I preferred "cat" command for the same.

As the root user I issued the following steps.

Host file

Made an entry in the "/etc/hosts" file which should have the system IP address as well as the machine name.

Kernel Parameters

# projadd oracle

Append the below line to the "/etc/user_attr" file
oracle::::project=oracle

Changed the "max-shm-memory" to 4gb from default value.

To reset this value, make sure at least one session is logged in as the oracle user.

# prctl -n project.max-shm-memory -v 4gb -r -i project oracle
# projmod -s -K "project.max-shm-memory=(priv,4gb,deny)" oracle

The above command dynamically change the value, so to keep the changes permanently made a changes to the "/etc/project" file.

# cat /etc/project
system:0::::
user.root:1::::
noproject:2::::
default:3::::
group.staff:10::::
oracle:100::::project.max-shm-memory=(priv,4294967296,deny)

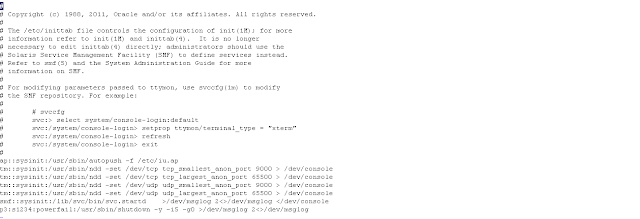

Add the below lines to the "/etc/inittab" file, immediately just before the entry for "startd".

tm::sysinit:/usr/sbin/ndd -set /dev/tcp tcp_smallest_anon_port 9000 > /dev/console
tm::sysinit:/usr/sbin/ndd -set /dev/tcp tcp_largest_anon_port 65500 > /dev/console
tm::sysinit:/usr/sbin/ndd -set /dev/udp udp_smallest_anon_port 9000 > /dev/console
tm::sysinit:/usr/sbin/ndd -set /dev/udp udp_largest_anon_port 65500 > /dev/console

Append the below line to the "/etc/system" file.

set maxusers=16384

Setup

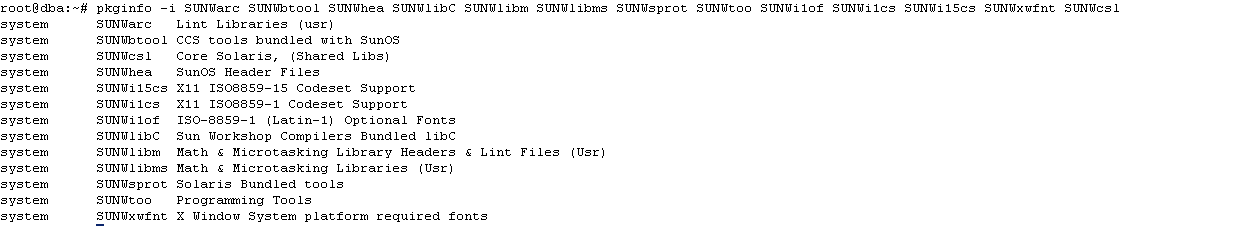

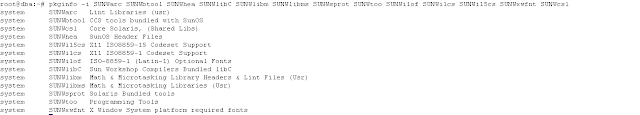

To check the required packages which are already installed.

# pkginfo -i SUNWarc SUNWbtool SUNWhea SUNWlibC SUNWlibm SUNWlibms SUNWsprot  \

SUNWtoo SUNWi1of SUNWi1cs SUNWi15cs SUNWxwfnt SUNWcsl

To add the required package

# pkgadd -d /cdrom/sol_10_910_x86/Solaris_10/Product "package name"

Create the new groups and users.

groupadd oinstall
groupadd dba
groupadd oper

useradd -g oinstall -G dba -d /export/home/oracle oracle
mkdir /export/home/oracle
chown oracle:oinstall /export/home/oracle
passwd -r files oracle

I got default configured server image, hence no mount point as "/u01".

So, I created directory as "/u01" and the soft link which will point the installing

directory which is "/export/home/oracle".

mkdir -p /export/home/oracle/u01
ln -s /export/home/oracle/u01 /u01
mkdir -p /u01/app/oracle/product/11.2.0/db_1
chown -h oracle:oinstall /u01
chown -R oracle:oinstall /export/home/oracle/u01

From Oracle user.

cat >> /export/home/oracle/.profile

# Oracle Settings
TMP=/tmp; export TMP
TMPDIR=$TMP; export TMPDIR
# Select the appropriate ORACLE_BASE
ORACLE_HOSTNAME=dba.cybage.com; export ORACLE_HOSTNAME
ORACLE_UNQNAME=orcl; export ORACLE_UNQNAME
ORACLE_BASE=/u01/app/oracle; export ORACLE_BASE
ORACLE_HOME=$ORACLE_BASE/product/11.2.0/db_1; export ORACLE_HOME
ORACLE_SID=orcl; export ORACLE_SID
PATH=$ORACLE_HOME/bin:$PATH; export PATH

Activate the above changes.

# . .profile

Installation

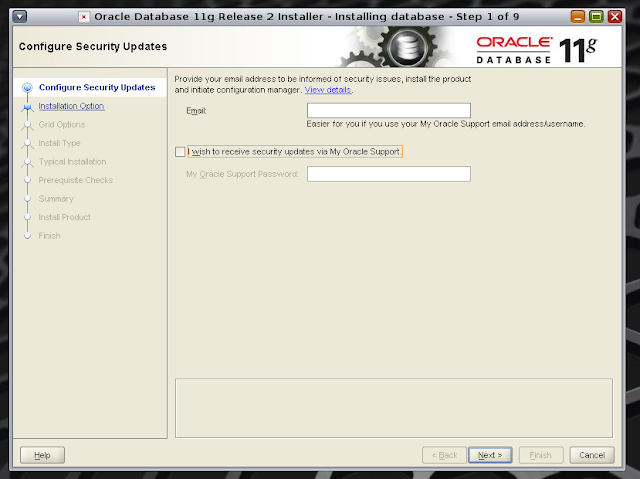

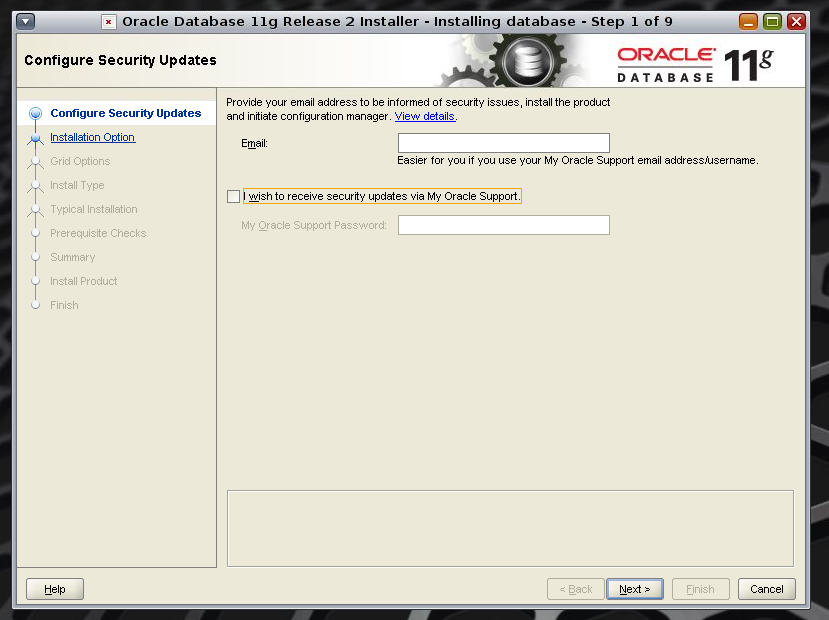

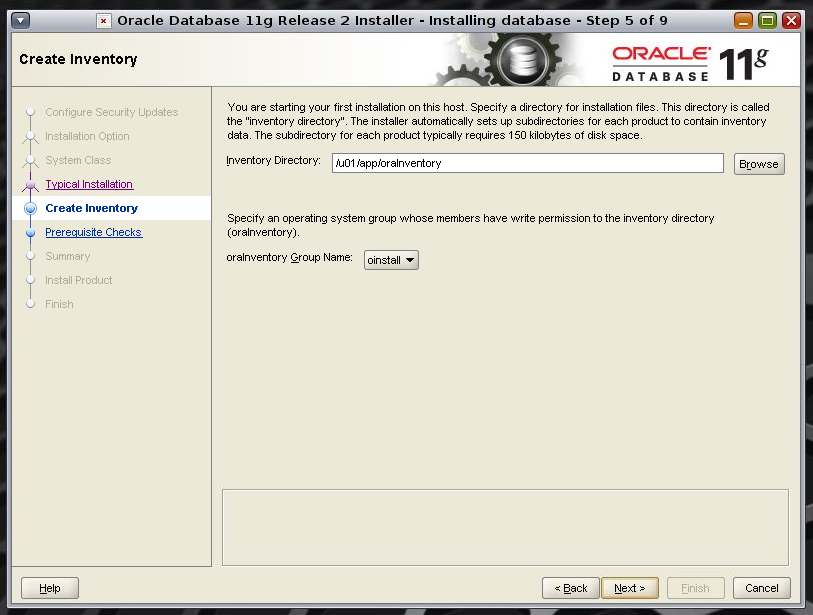

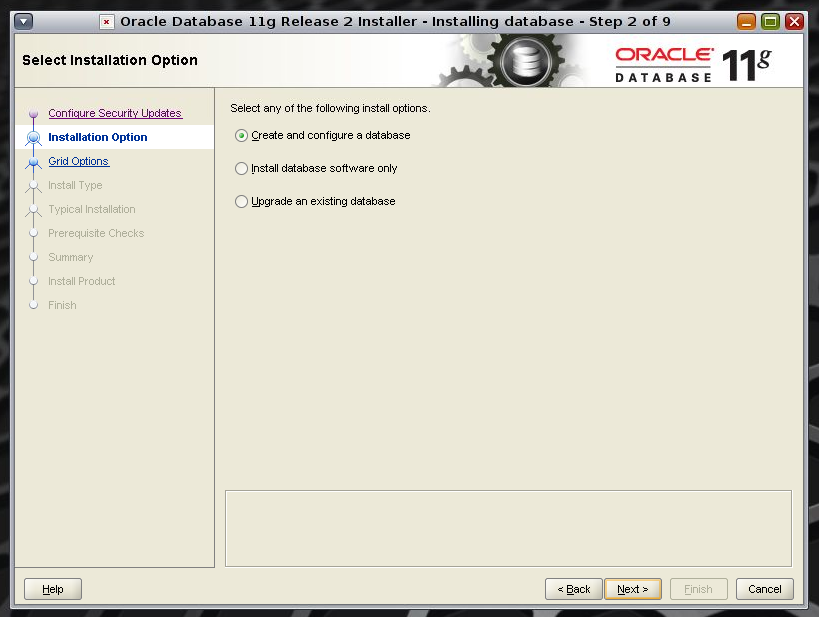

Login as the Oracle as run the installer

#./runInstaller

Once the installation gets complete, run the below script from root user.

#/u01/app/oraInventory/orainstRoot.sh

#/u01/app/oracle/product/11.2.0/db_1/root.sh
